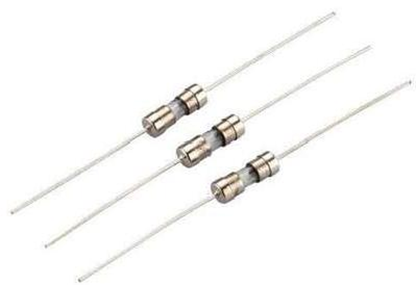

F3.15AL250V FBP 3.6*10 Fast Acting Glass Tube Fuse Disposable

  • 1
  • 2
  • 3

Brand Name : RFan

Model Number : MTS1500A

Certification : UL.TUV.ROHS

Place of Origin : China

MOQ : 3000

Price : 0.02-0.5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1KK/M

Delivery Time : 5-7days

Packaging Details : 1000/Bag

Vac : 125V/250V

Agency : UL,CUL,KC,VDE,CQC

Operating Temperature Range : -55°C to +125°C

Blow Type : Fast-acting

Fuse Style : Cartridge

Lead Wire : Tin Plated Copper

Operating Temp Range : -55℃～+125℃

Halogen Free : Yes

Contact Now

F3.15AL250V FBP 3.6*10 Fast-Acting Glass Tube Fuse Disposable Fuse

FBP Series 3.6*10mm Fast-Acting Glass Tube Fuse
F3.15AL250V FBP 3.6*10 Fast Acting Glass Tube Fuse Disposable
●Materials

Rart NameMaterial
CapNickel Plated Brass
BodyGlass Tube
Fuse elementAlloy
Lead wireTin Plated Copper



●Packaging

Packing typeDescription
Bulk500PCS per bag
Tape1,000PCS per box


●Dimensions
F3.15AL250V FBP 3.6*10 Fast Acting Glass Tube Fuse Disposable
●Electrical Characteristics

%of Ampere Rating(In)Blowing Time
210%*In(30 min Max)
275%*In(10 ms~3 s)
400%*In(3 ms-300 ms)
1000%*In(20 ms Max)


●Fuse List

Catalog NumberAmpere AatingVoltage RatingMax Voltage Drop(mv)

T Melting

Integral(Ais

FBP0050A/B50mA250V/125V8500.0003
FBP0063A/B63mA250V/125V7500.0007
FBP0080A/B80mA250V/125V6500.0009
FBP0100A/B100mA250V/125V6000.0022
FBP0125A/B125mA250V/125V5500.0064
FBP0160A/B160mA250V/125V5000.0090
FBP0200A/B200mA250V/125V4800.015
FBP0250A/B250mA250V/125V4400.02
FBP0315A/B315mA250V/125V4000.03
FBP0400A/B400mA250V/125V3700.05
FBP0500A/B500mA250V/125V3500.20
FBP0630A/B630mA250V/125V3200.3
FBP0800A/B800mA250V/125V3000.7
FBP1100A/B1A250V/125V2800.8
FBP1125A/B1.25A250V/125V2802.4
FBP1160A/B1.6A250V/125V2503.5
FBP1200A/B2A250V/125V2403.9
FBP1250A/B2.5A250V/125V2004.7
FBP1315A/B3.15A250V/125V18010.8
FBP1400A/B4A250V/125V18013.9
FBP1500A/B5A250V/125V15025.4
FBP1630A/B6.3A250V/125V13731
FBP1800A/B8A250V/125V12449
FBP2100A/B10A250V/125V11065
FBP2160A/B16A250V/125V8887
FBP2200A/B20A250V/125V80124
